PIMS is to provide a current status report in respect of physical parts (generally pipes) of the pipeline. Items included in addition to pipes are bends, valves, assemblies, joints and tees.
During the lifetime of the GIGL pipelines, PIMS will keep track of the information related to the constituent parts of the GIGL pipelines (Pipes, Bends, Valves, Assemblies, Joints, Tees, Reducers) readily accessible.
All information in PIMS will be kept as historical records, will act as a valuable tool to many areas of the Project in terms of future requirements, expectations and achieved performance.
All information in PIMS will be kept as historical records, will act as a valuable tool to many areas of the Project in terms of future requirements, expectations and achieved performance.
All information in PIMS will be kept as historical records, will act as a valuable tool to many areas of the Project in terms of future requirements, expectations and achieved performance.
All information in PIMS will be kept as historical records, will act as a valuable tool to many areas of the Project in terms of future requirements, expectations and achieved performance.
Business ObjectiveNEGG PHASE III, Section 10 (PART A & PART B))

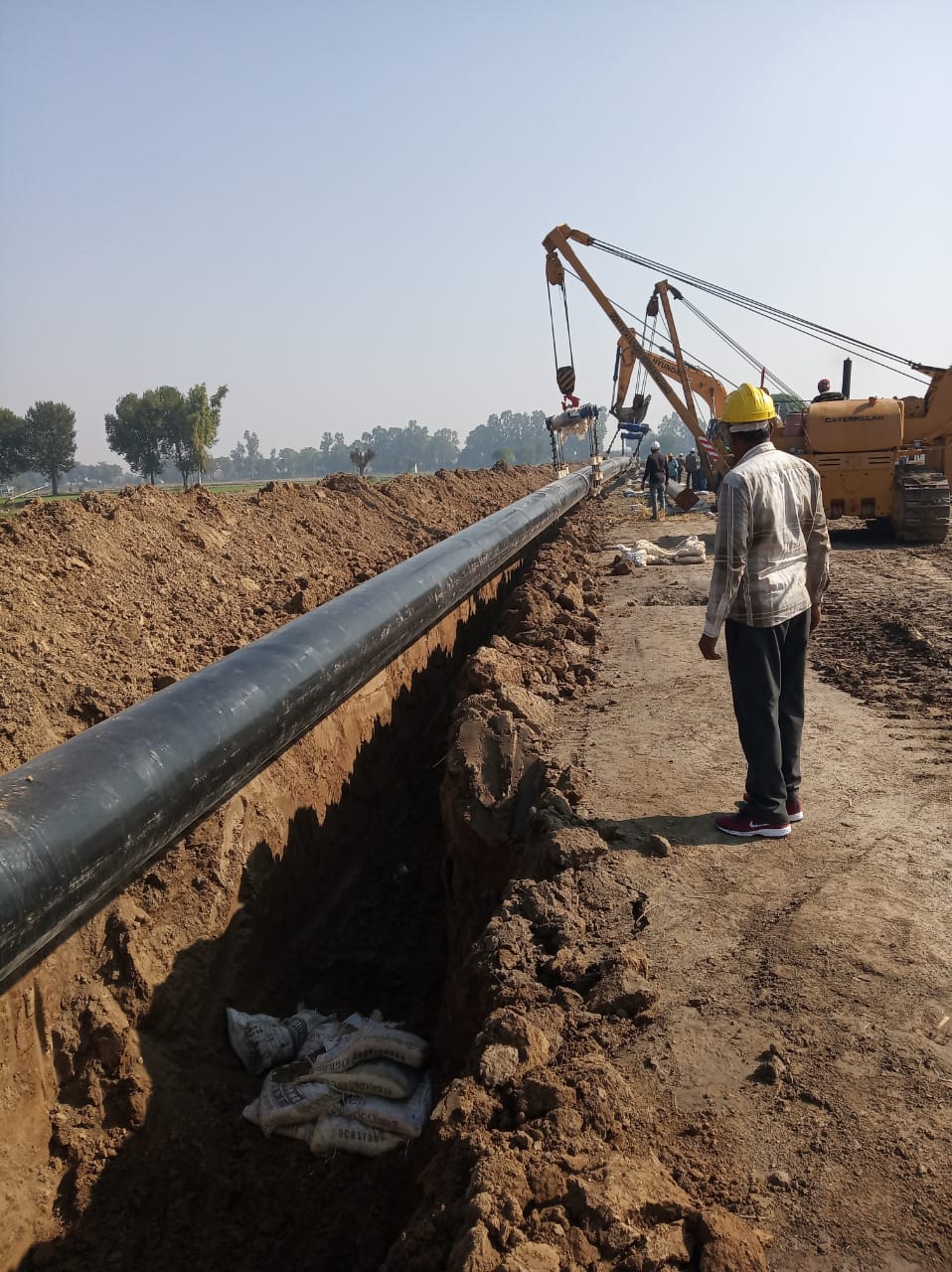

Pipeline laying from Dispatch terminal (DT) at Dimapur (Nagaland) from Ch. 00.00 Km to Ch. 49+600 Km including associated works (Mechanical, Piping & Terminal works) at Three (03) SV stations, & One (01) Dispatch Terminal.
Project Name : NEGG PHASE III, Section 10 (PART A & PART B)
| Project Name | : | NEGG PHASE III, Section 10 (PART A & PART B) | |
| Project Length | : | 199 KM > | |
| Material Specification | : | API 5L GR. B X 70 | |
| Diameter | : | 12” | |
| Wall Thickness (mm) | : | 7.14 MM, HOT BEND: 7.92 MM/9.53 MM | |
| Coating | : | 3LPE Coating | |
| Client | : | M/S INDRADHANUSH GAS GRID LIMITED (IGGL) | |
| Consultant | : | VCS Engineering & Quality Services Pvt. Ltd. |  |
| Contractor | : | CORRTECH INTERNATIONAL LIMITED |  |
| PIMS | : | Unistal Systems Pvt. Ltd. |  |
| Start Date | : | 14/12/22 (LOA date) | |
| End Date | : | 10/09/23 |
| Spread | Section | Chainage From | Chainage To | Length |
|---|---|---|---|---|
| Spread -1A | Section-1 | 0.000 | 49.600 | 49.600 |
| Spread -1B | Section-1 | 49.600 | 112.400 | 62.800 |
| Spread -1C | Section-1 | 112.400 | 154.000 | 41.600 |
| Spread -1D | Section-1 | 154.000 | 199.007 | 45.000 |
�
Services By Unistal System Pvt. Ltd.
